MODEL -------------------------------------	HP 500 -------------------------------------	HP 2000 -------------------------------------	HP 2500 -------------------------------------
Power Output	500W	2000W	2500W
Input Voltage	110V ro 220V/1ph	220V/1ph	220V/1ph
Max.Current	6A/3A	12A	15A
Cap Diameter	A25 - 60mm B60 - 120mm	A16 - 35mm B35 - 60mm C60 - 100mm	A18 - 60mm B35 - 80mm
Belt Speed	-	20 - 60m/min	Max.80m/min
Cooling System	Air Cooled	Liquid Cooled	Liquid Cooled
Generator Type	IGBT	IGBT/MOS-FET	IGBT/MOS-FET
Frequency	30 - 60KHz	50 - 100KHz	50 - 100KHz
Generator Size	370x200x387mm	430x220x387mm	560x270x250mm
Coil	-	110x570x160mm	-
Weight	9kg/1.2kg	20kg/6.5kg	-

Features:
Fast and efficient. The foil seals tightly without being affected by moisture, grease or powder contamination on sealing area. Safe in use. The machine is built with protection circuit to protect against electric current overload, voltage overload and output overload. Easy & simple to use. All functions are clearly labeled on the display panel, which is convenient to access. Modular component design minimizes maintenance requirements. A broad range of applications can be simply setup by button control. Solid state elements contribute high efficiency yet low power consumption. Quick adapters on power and control wires provide easy replacement. The IGBT/MOS-FET module provides high efficiency, low power consumption and long service life.
Height of electro-magnetic coil is adjustable and flexible for a range of bottle heights.

Applications:
Suitable for non-metal containers of glass or plastic bottles, such as ABS, PE (HDPE, LDPE), PET, PP, PS, PVC. Suitable for screw caps, tamper-proof caps, etc. Suitable for any product in the container:
A: Medicine - Powder, Lotion, Capsule, Ingot.
B: Cosmetic - Skimmed milk, Lotion.
C: Beverages - Water, Milk, Juice, Yogurt.
D: Chemical - Alcohol, Cleaner.
E: Food - Jelly, Fish food.
F: Others - Engine oil, Machine oil.
Bottle cap O.D.: 16 ~ 120mm
Certificate: CE

Specifications:

Model: HF-500
Power Output: Max 500W
Input Voltage: 110V or 220V / 1ph
Max. Current: 6A / 3A
Cap Diameter: 16 ~ 60mm / 60 ~ 120mm
Cooling System: Air Cooled
Generator Type: IGBT
Frequency (KHZ): 30 ~ 50
Generator Size (cm): 39 x 21 x 39
Measurement (cm): 65 x 55 x 55
N.W / G.W (kg): 28 / 60

The Modular High Efficiency Performance Model

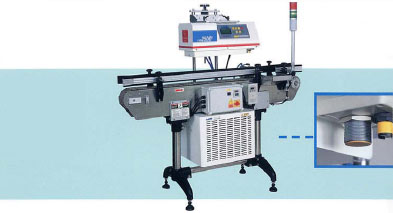

The entire machine is constructed of high quality modular mechanisms, such as heating generator, induction coil, conveyor, speed reducer, control box, elevation unit and stand. This machine features quick maintenance and creates great profits for the customer.

Specifications:
Model: HF-2000 (Conveyor)
Power Output: Max 2,000W
Input Voltage: 220V / 1ph
Max. Current: 12A
Cap Diameter: 16 ~ 60mm / 16 ~ 80mm / 60 ~ 120mm
Belt Speed: Max 40m/min
Cooling System: Liquid Cooled
Generator Type: MOS-FET
Frequency (KHZ): 40 ~ 100
Generator Size (cm): 46 x 22 x 40
Measurement (cm): 152 x 82 x 146
N.W / G.W (kg): 128 / 300

Model: HF-2000-2 (Stainless Stand)
Power Output: Max 2,000W
Input Voltage: 220V / 1ph
Max. Current: 12A
Cap Diameter: 16 ~ 60mm / 16 ~ 80mm / 60 ~ 120mm
Cooling System: Liquid Cooled
Generator Type: MOS-FET
Frequency (KHZ): 40 ~ 100
Generator Size (cm): 46 x 22 x 40
Measurement (cm): 114 x 80 x 150
N.W / G.W (kg): 90 / 185

Features:
Fast and efficient. The foil seals tightly without being affected by moisture, grease or powder contamination on sealing area.

The detector checks the presence of foil. It sends a signal when foil is missed in a certain cap. This prevents unsealed products from being delivered.

Safe in use. The machine is built with protection circuit to protect against electric current overload, voltage overload and output overload.

Easy & simple to use. All functions are clearly labeled on the display panel, which is convenient to access.
Modular component design minimizes maintenance requirements.

A broad range of applications can be simply setup by button control.

Solid state elements contribute high efficiency yet low power consumption.
Quick adapters on power and control wires provide easy replacement.

The IGBT/MOS-FET module provides high efficiency, low power consumption and long service life.
Height of electro-magnetic coil is adjustable and flexible for a range of bottle heights.

Employs European plastic steel chain blocks, combined with standardized accessories, for long service life.

Applications:
Suitable for non-metal containers of glass or plastic bottles, such as ABS, PE (HDPE, LDPE), PET, PP, PS, PVC.
Suitable for screw caps, tamper-proof caps, etc.

Suitable for any product in the container:
A: Medicine - Powder, Lotion, Capsule, Ingot.
B: Cosmetic - Skimmed milk, Lotion.
C: Beverages - Water, Milk, Juice, Yogurt.
D: Chemical - Alcohol, Cleaner.
E: Food - Jelly, Fish food.
F: Others - Engine oil, Machine oil.
Bottle cap O.D.: 16 ~ 120mm (Special customized cap size acceptable)
Certificate: CE


We provides leading sealing machine technologies for commercial and industrial needs of sealing machine. Accurate sealing requires high technologies sealing machine to accomplish; that makes Proking irreplaceable by manufacturing precision sealing machines to being a professional of sealing machine.

Our high-tech sealing machine is suitable for any kind of material but metal products, and the sealing process is able to be fast finished even with stains left behind. Sealing machine that We provide accepts customized requirements on rims and sealing machine belts. Additional, PT Asia sealing machine is equipped both English and Chinese monitors that makes sealing machine operation easier and faster, meanwhile, these intelligent sealing machines automatically would cut power off when overloading.

For more advantages of sealing machine, please contact us, it would be our pleasure to serve you. There are many other types of sealing machine in our show room, please click the links to check them out!

Specifications:
Model: HF-2500 (Conveyor)
Power Output: Max 2,500W
Input Voltage: 220V / 1ph
Max. Current: 15A
Cap Diameter: 16 ~ 60mm / 16 ~ 80mm / 60 ~ 120mm
Belt Speed: Max 50m/min
Cooling System: Liquid Cooled
Generator Type: MOS-FET
Frequency (KHZ): 40 ~ 100
Generator Size (cm): 26 x 56 x 246
Measurement (cm): 152 x 72 x 166
N.W / G.W (kg): 128 / 260

Model: HF-2500-2 (Stainless Stand)
Power Output: Max 2,500W
Input Voltage: 220V / 1ph
Max. Current: 15A
Cap Diameter: 16 ~ 60mm / 16 ~ 80mm / 60 ~ 120mm
Cooling System: Liquid Cooled
Generator Type: MOS-FET
Frequency (KHZ): 40 ~ 100
Generator Size (cm): 26 x 56 x 246
Measurement (cm): 114 x 78 x 160
N.W / G.W (kg): 96 / 210

Applications:
Suitable for non-metal containers of glass or plastic bottles, such as ABS, PE (HDPE, LDPE), PET, PP, PS, PVC.
Suitable for screw caps, tamper-proof caps, etc.

Features:
Fast and efficient. The foil seals tightly without being affected by moisture, grease or powder contamination on sealing area.

The detector checks the presence of foil. It sends a signal when foil is missed in a certain cap. This prevents unsealed products from being delivered.

Safe in use. The machine is built with protection circuit to protect against electric current overload, voltage overload and output overload.

Easy & simple to use. All functions are clearly labeled on the display panel, which is convenient to access.
Modular component design minimizes maintenance requirements.

A broad range of applications can be simply setup by button control.

Solid state elements contribute high efficiency yet low power consumption.

Quick adapters on power and control wires provide easy replacement.

The IGBT/MOS-FET module provides high efficiency, low power consumption and long service life.

Height of electro-magnetic coil is adjustable and flexible for a range of bottle heights.

Employs European plastic steel chain blocks, combined with standardized accessories, for long service life.

Suitable for any product in the container:
A: Medicine - Powder, Lotion, Capsule, Ingot.
B: Cosmetic - Skimmed milk, Lotion.
C: Beverages - Water, Milk, Juice, Yogurt.
D: Chemical - Alcohol, Cleaner.
E: Food - Jelly, Fish food.
F: Others - Engine oil, Machine oil.
Bottle cap O.D.: 16 ~ 120mm (Special customized cap size acceptable)
Certificate: CE

Cap Sealer / Cap Sealing Machine
Cap sealing is specially designed to meet needs of heavy loading. This cap sealing is the best solution to clients with high production, because of the cap sealing machines high power output; it finishes sealing at a high speed.

PT Asia cap sealing machines are made of stainless steel, and that makes the lifetime of cap sealing machine extended.

PT Asia high-tech cap sealing machine is suitable for any kind of material but metal products, and the sealing process is able to be fast finished even with stains left behind. Cap sealing machine that We provide accepts customized requirements on rims and cap sealing machine belts. Additional, PT Asia cap sealing machine is equipped both English and Chinese monitors that makes cap sealing machine operating easier and faster, meanwhile, these intelligent cap sealing machines automatically cut power off when overloading.

Specificaiton:

Model: HF-3000 (Conveyor)
Power Output: Max 3,000W
Input Voltage: 220V / 1ph
Max. Current: 18A
Cap Diameter: 16 ~ 60mm / 16 ~ 80mm / 60 ~ 120mm
Belt Speed: Max 60m/min
Cooling System: Liquid Cooled
Generator Type: MOS-FET
Frequency (KHZ): 40 ~ 100
Generator Size (cm): 48 x 38 x 160
Measurement (cm): 116 x 152 x 190
N.W / G.W (kg): 140 / 300

Model: HF-3000-2 (Stainless Stand)
Power Output: Max 3,000W
Input Voltage: 220V / 1ph
Max. Current: 18A
Cap Diameter: 16 ~ 60mm / 16 ~ 80mm / 60 ~ 120mm
Cooling System: Liquid Cooled
Generator Type: MOS-FET
Frequency (KHZ): 40 ~ 100
Generator Size (cm): 48 x 38 x 160
Measurement (cm): 98 x 60 x 180
N.W / G.W (kg): 100 / 210

Features:
Fast and efficient. The foil seals tightly without being affected by moisture, grease or powder contamination on sealing area.
The detector checks the presence of foil. It sends a signal when foil is missed in a certain cap. This prevents unsealed products from being delivered.
Safe in use. The machine is built with protection circuit to protect against electric current overload, voltage overload and output overload.
Easy & simple to use. All functions are clearly labeled on the display panel, which is convenient to access.
Modular component design minimizes maintenance requirements.
A broad range of applications can be simply setup by button control.
Solid state elements contribute high efficiency yet low power consumption.
Quick adapters on power and control wires provide easy replacement.
The IGBT/MOS-FET module provides high efficiency, low power consumption and long service life.
Height of electro-magnetic coil is adjustable and flexible for a range of bottle heights.
Employs European plastic steel chain blocks, combined with standardized accessories, for long service life.
