เครื่องห่อถาดอาหารด้วยพิล์มหด ชนิดอัตโนมัติ

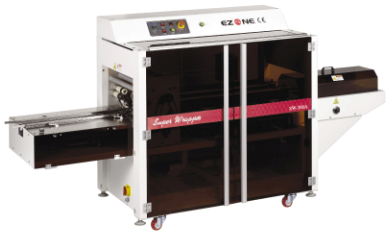

Automatic Stretch Wrapping Machine - SUPPER WRAPPER
MODEL : SW-250A, SW-300A
Features and Benefits
• Compact construction, high efficiency
• Provides real, fine stretched packaging
• Easy swift and control for variouse size of packaging
• Designed small equipment, needs just little space |
|
|
|
|
SW-250A
|
SW-300A
|
|
Style
|
Automatic / Semi-Automatic
|
Automatic / Semi-Automatic
|
|
Packing Speed
|
Max. 30 PPM
|
Max. 25 PPM
|
|
Tray Length
|
150 - 250 mm
|
200 - 300 mm
|
|
Tray Width
|
90 - 170 mm
|
130 - 210 m
|
|
Tray Height
|
15 - 60 mm
|
15 - 60 mm
|
|
Film Thickness
|
12 ~ 35 microns
|
12 ~ 35 microns
|
|
Film Roll Width
|
300 - 450 mm
|
350 - 500mm
|
|
Power Supply
|
220 VAC 1 PH 50/60 Hz 2.2 KW
|
220 VAC 1 PH 50/60 Hz 2.2 KW
|
|

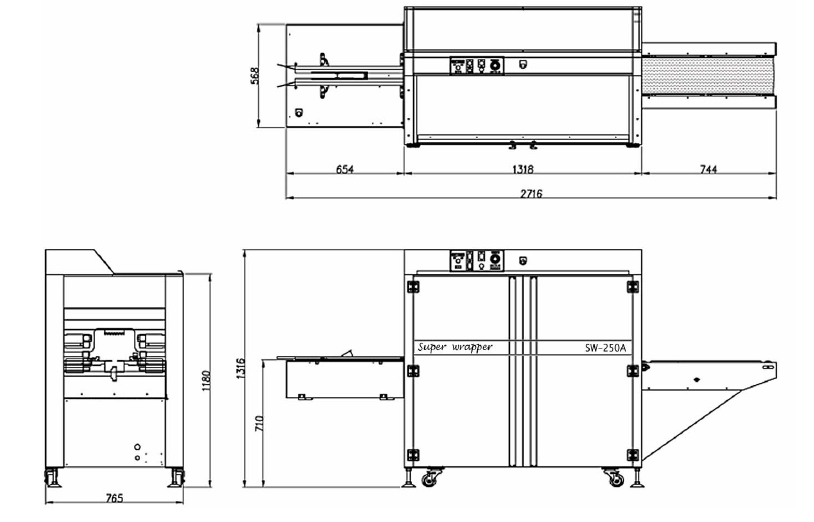

Machine Dimension
|
2,700 (L) x 790 (W) x 1,300 (H) mm
|
3,000 (L) x 840 (W) x 1,300 (H) mm
|
|
Machine Weight
|
300 Kg
|
350 Kg
|
|
Optional
|
SUS Hull, Infeed Conveyor
|
Labeling System
|
|
|
|
